5.8G Short Range Wireless Ethernet Bridge Weatherproof For PTP PTMP IP Transmitting

Name: 58G Short Range Wireless Ethernet Bridge Weatherproof For PTP PTMP IP Transmitting
Brand: SUNTOR
Price: 1 USD

Brand Name : SUNTOR

Model Number : ST5817H

Certification : FCC, CE, RoHS

Place of Origin : Shenzhen, China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 1000 set/ month

Delivery Time : 7-15 days

Packaging Details : Plastic Box

Modulation : OFDM

Range : 2-3km

Signal : Video, Audio, Internet Data

Weight : 500g

Contact Now

5.8G Short Range Wireless Ethernet Bridge for PTP / PTMP IP Camera Transmitting

Specifications

SYSTEM INFORMATION
Processor	Atheros AR9342 (560MHz)
Memory Size	64MB DDR2
NOR Flash	8MB (max 16MB optional)
LAN Interface	2 FE ports with Auto-MDI/X
Antenna	Integrated 5GHz 17dBi directional dual-polarization antenna
Power Consumption	5.5 Watts
Power method	Passive PoE
RoHS Compliant	Yes
Humidity	Operating: 5% to 95% (non-condensing) Storage: Max.90% (non-condensing)
Temperature Range	Operating:-20ºC to 70ºC Storage: -40ºC to 90ºC

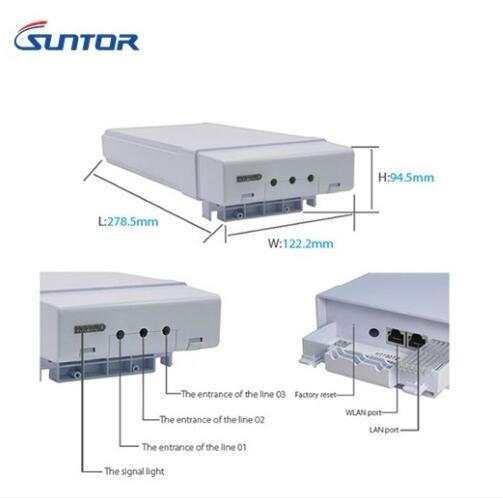

Dimensions (H x W x D)	278.5 x 122.2 x 94.5 (mm)

Connections data
Max of clients	encryption	100
Max of concurrent associations		TCP, each station upload and download randomly from 384Kbps to 768Kbps		UDP, each station upload and download 2Mbps
	WPA2-PSK	40		20
Transmit Power & Receiver Sensitivity
Transmit Powe	Data Rate		5GHz (aggregate)
	HT20 MCS0		25dBm
	HT20 MCS7		19dBm
	HT40 MCS0		24dBm
	HT40 MCS7		19dBm
Receiver Sensitivity	Data Rate		5GHz
	HT20 MCS0		-94dBm
	HT20 MCS7		-77dBm
	HT40 MCS0		-93dBm
	HT40 MCS7		-75dBm

17dBi@5GHz dual-polarization antenna

Gain	17dBi
Radiation	Directional
Frequency Range	5.1-5.9 GHz
Polarization	Dual – Polarization
Azimuth -3dB Beamwidth	Horizontal(Port 1): 30 degrees Vertical(Port 2): 33degrees
Elevation -3dB Beamwidth	Horizontal(Port 1): 17 degrees Vertical(Port 2): 17degrees
Isolation	-40dB (Max)
Front-to-Back Ratio	-30dB (Max)
VSWR	Horizontal (Port 1) : < 1: 1.87; Vertical (Port 2): < 1: 1.55
Cross Polarisation Isolation	-28dB (Max)
SideLobe	<-12dB

Features

IEEE 802.11b/g/n compliant
Atheros 560MHz Networking Processor
Up to 26dBm output power
Up to 300Mbps physical data rates
Enhanced sensitivity performance
Built-in 17dBi
5GHz dual-polarization antenna
Antenna Alignment Signal Survey
Distance Adjustment for long range transmission
Passive PoE
Weatherproof casing

5.8G Short Range Wireless Ethernet Bridge Weatherproof For PTP PTMP IP Transmitting
Application

1. Point to Point, Point to Multipoint wireless Communication
2. Wireless CCTV Video Surveillance
3. Enterprise Wireless LAN interconnection
