720P & 1080p small COFDM Video Transmitter , Wireless Audio Transmission

720P & 1080p small COFDM Video Transmitter , Wireless Audio Transmission

ST5200W1 Specs Sheet.pdf

Introduction:
Mainly used in EOD robot and UAV video Aerial photography transmission scenario, the device will transmit video signal to the receiver and display video images,can do real-time monitoring.

ST5200W mini portable HD wireless video transmission equipment is new generation of real-time broadcast-quality high-resolution image transmission system. It adopts the current leading COFDM modulation technology and relative narrow-band frequency 1.25/2.5/6/7/8MHz(optional), it has the strong anti-jamming capability, overcomes the reflection and cover caused by transmission multipath simulation technique and conventional modulation techniques, to realize high-speed photography and real-time transmit high quality image in NLOS or complicated working environment.

Features:

• High definite resolution: 1080P(1920*1080) compatible with 720*576.
• High quality digital video processing&video encoding and decoding&DVD picture.
• Excellent anti-interference performance under complex electromagnetic condition.
• Transmit distance up to 15km LOS for UAV and 500m NLOS block transmission.
• Small size and light weight easy for carry.
• Can stably transmitter video&audio signal under the condition of high-speed mobile and multipath interference.
• Low delay time less 80ms.

Packaging Details:

• 1* Transmitter;
• 1* Receiver;
• 3* Omni antenna;
• 1* RF cables.

Tx Parameters

wireless video transmitter and receiver

audio video transmitter

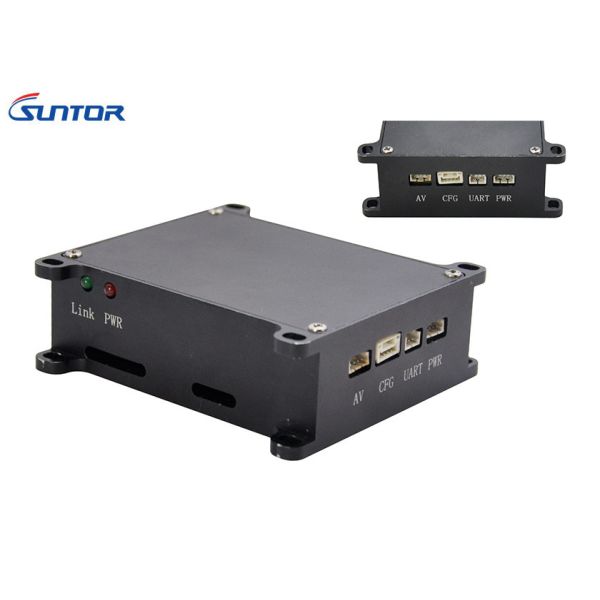

720P & 1080p small COFDM Video Transmitter , Wireless Audio Transmission Images
